Dimmable LED Driver, 40W 120-277V input, 24V Constant Voltage output – Outdoor Enclosure

SKU:

LDS40W24VUDREO

LTF’s high-performance constant voltage Unidrivers are the optimal solution for Sunlight2 Architectural Grade LED tape. Dimmable with ELV, Triac, and 0-10V type dimmers.

Share:
IDEAL FOR
  • Flexible LED tape applications
  • Under cabinet/cove lighting
  • Linear LED fixtures with remote power supply
  • Low voltage string lights
APPLICATIONS
  • Linear LED fixtures
  • LED tape
  • DC bulbs requiring constant voltage
DIMMING
  • Deep dimming, 0% to 100% dimming
  • Triac (Forward Phase) type dimmers
  • ELV (Reverse phase) type dimmers
  • 0-10V, 1-10V type dimmers
COMPATIBLE DIMMERS
  • Lutron DIVA CL – model number: DVCL-153P-WH
  • Lutron MAESTRO – model number: MRF2-6ELV-120-WH
  • Creston – model number: SELV-300P
  • Lutron Diva – model number: 0-10V DVSTV
  • Leviton – model number: IP710

View all Compatible dimmers.pdf

Spec Summary

Types - power supplies

LED Driver

Wattage

40W

Input Voltage

120-277VAC 50/60Hz

Output Current

1660mA

Dimming

TRIAC/ELV/0-10V

Form Factor:

G3

Voltage - power supplies

24V

MODEL NUMBER
LDS40W24VUDREO

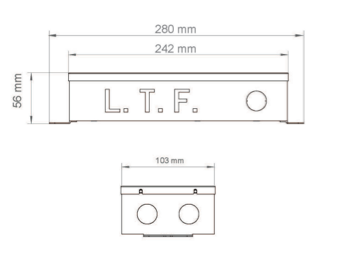

Dimensions

280 x 103 x 56mm

FORM FACTOR
G3 (Wet Location)
