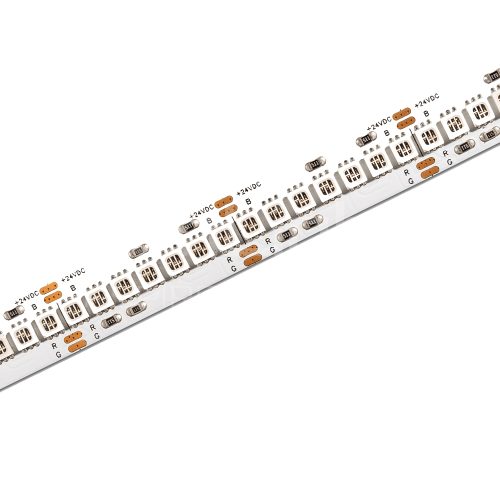

SunLight2® Architectural Grade RGB LED Tape
• Uniform, high density, high CRI illumination
•Architectural Grade, built with durable 3 Oz. Copper, VHB 3M
• Peak Wavelength, ˜630(Red), ˜525(Green),
˜470(Blue)
• 24V DC
•55 Lumen / W
•7W /Foot
• Cuttable section: 1.25”
• IP20
• Ideal for Linear Lighting applications.
• UL listed
• 3 years / 25k hour warranty
Description
SunLight2® Architectural grade LED tapes provide the most natural, vision-friendly lighting experience for any indoor or outdoor location. SunLight2 LED tapes are preferred choice for lighting designers and architects to transform spaces with enhanced ambiance and detail, with the long life and performance you expect from LED lighting.SunLight2’s color accuracy and vibrancy are ensured with its high Color Rendering Index (CRI) rating up to 98CRI and R9 up to 97+, close to that of natural sunlight (CRI 100) but without the sun’s damaging UV rays.
Sunlight2® Architectural LED tapes are being offered in Singl CCTs, Dim two Warm, Color tunnable, RGB, RGBTW, and custom colors.
Features
| CCT: RGB |
| Peak Wavelength, ˜630(Red), ˜525(Green), ˜470(Blue) |
| Title 24 Compliant |
| High efficacy lumen output – 55 lm/W |
| UL Listed |
| LM80 Compliant LEDs |
| Tight binning less than 3 Mac Adam Ellipses |
| Uniform linear light output |
| High efficiency LED tape |
| 50,000 hour rating |

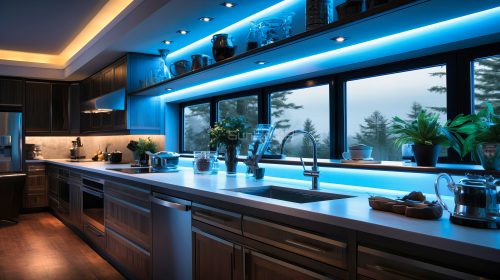

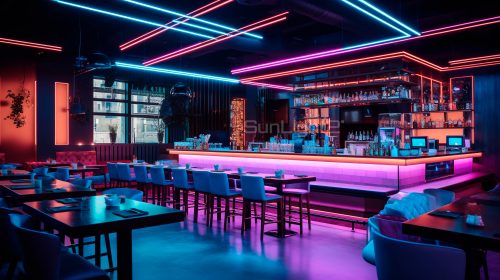

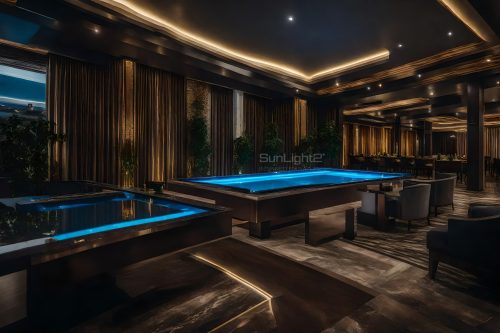

Applications
| Color-critical task lighting |
| Residential & hospitality lighting |
| Accent lighting |
| Under Cabinet Lighting |
| Cove Lighting |
| Backlighting |
SPECTRORADIOMETRIC CHART
CRI TEST
TM30 TEST
IES
DIMMING CURVE
MECHANICAL SPECIFICATIONS
model number
QLUXF50001120LED3535RGB
Reel Length
5 meters
Cut length
1.25"
Width
12mm
