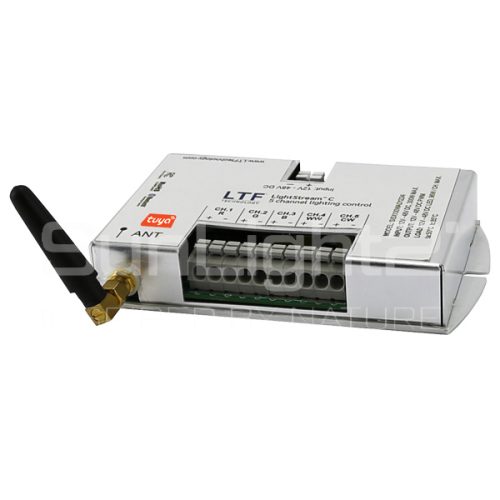

TUYA Wireless Module – Bluetooth / WIFI 5 Channel
SKU: SI5X250WD1224BT5-3001
Work with Tuya App
LiteStream™ C controller modules are award winning innovative and easy-to-install wireless control devices for IoT applications with high power density of 30W / Cubic Inch. LiteStream C can be added at the output of any standard constant voltage drive and converting to a IoT device, enabling color tuning, dimming, zone controls and RGB controls via Bluetooth or WiFi protocols.
Features
- Transform 12V or 24V constant voltage LEDs into Bluetooth wireless IoT-connected Smart devices
- Single channel for Dim-to-Warm & single CCT LEDs
- 5-channel 300W for RGBW+WW controls
- Durable, specifier-grade build quality & electronic components
- Ideal for new or retrofit installations & OEM LED lighting fixtures
- Tuya compatible
Applications
- Indoor and outdoor applications
- Residential and commercial
- New or retrofit installations
Spec Summary
| Type | Bluetooth |
|---|---|
| Max Wattage | 96W Per Channel |
| Input | 12V or 24V DC |
| Output | 12V or 24V DC (~7.5kHz PWM) |
| Ip Rating | IP44 |
| Form Factor | C5 |
MECHANICAL SPECIFICATIONS
Form Factor
C5 (5-Channel)
Dimensions
145 x 74 x 26.3mm
